Accu-Rock™ Rotary Table Units






Accu-Rock™ Tables

Rotary tables only break while you are using them to make money; choose your provider carefully. Only ATS Systems offers:

ROTARY TABLES BUILT IN JAPAN’S LARGEST, MOST ADVANCED FACTORY

  • Made for ATS Systems

  • Built for your demanding applications: Oversize worm wheels, heavy duty brakes and crossroller bearings are standard on even the basic AR-model tables

  • Built to highest precision and quality standards.

ATS SYSTEMS’ EXCLUSIVE LOCAL SALES, SERVICE AND SUPPORT.

  • In shop pre-sale consultation – our full-time, regional managers (not part time representatives) can review your needs first hand.

  • Installation by our local, factory trained technicians (competitors do not have such resources) – includes integration to your machine tool and safety / maintenance training for your staff.

  • Lifetime support by our local field service staff and our full, central repair facility.

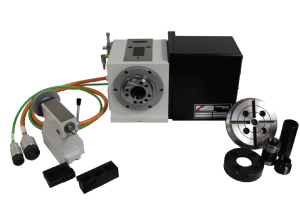

The Original Job Shop SMW Systems Package : RT-160

RT-160 FEATURES:

  • Heavy preloaded anti-friction bearing mounted spindle eliminates end-play, provides long, accurate, rigid life.

  • Power operated, high-torque brake provides rigidity to withstand heavy cuts, offset loads.

  • 360,000 position indexing, 4 second repeatability.

  • Power-operated, built-in collet closer.

  • Collet adapter permits use of both 5C and 3J collets.

  • Removeable faceplate. A-6 spindle nose accomodates direct-chuck mounting without adapter plates.

Many Accessories and Options Available

  • Tailstocks and spindle-with-brake supports

  • Through-spindle hydraulic porting

  • Hydraulic or pneumatic actuators with drawbars

  • Collet chucks, jaw chucks, and mandrels

  • Please contact ATS to discuss other options
