4 or 5 Axis Rotary Indexer

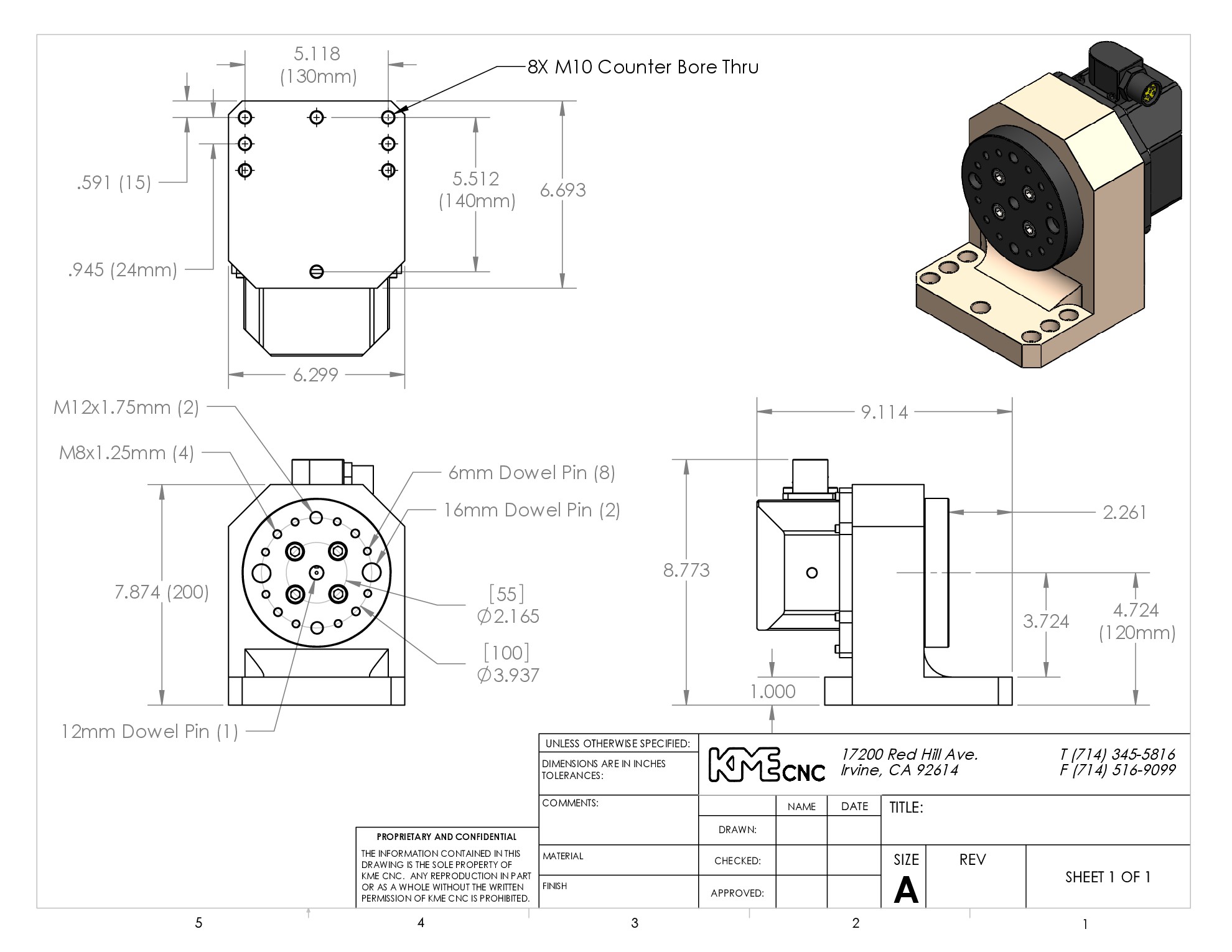

Drawings and Specifications


Click to enlarge image

Part #:NDX 135NDX210
Max Rotation/Step999.999º999.999º
Max Holding Torque250 ft-lb / 339 N-m750 ft-lb / 1017 N-m
Accuracy±10 Arc Sec±10 Arc Sec
Repeatability±5 Arc Sec±5 Arc Sec
Gear Ratio100:1100:1
Max Part Size7″ (178mm)9″ (229mm)
ConstructionMeehanite Cast IronMeehanite Cast Iron
Drive Anti-CorrosionRaydent CoatingRaydent Coating
Faceplate Diameter135mm190mm
SignalSingle M-Code FunctionSingle M-Code Function
Weight40 lbs80 lbs
Drive Size113mm158mm
